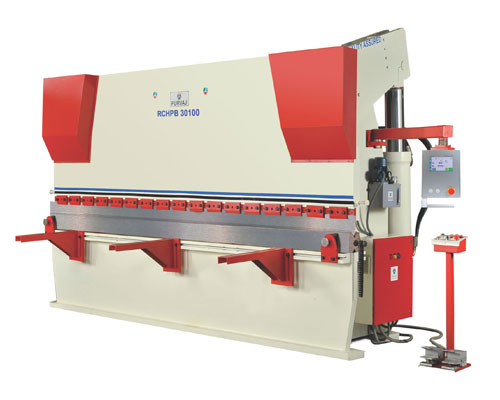

HYDRAULIC 2 AXIS NC PRESS BRAKE
November 10, 2022
Two side Thickness Planer
November 10, 2022

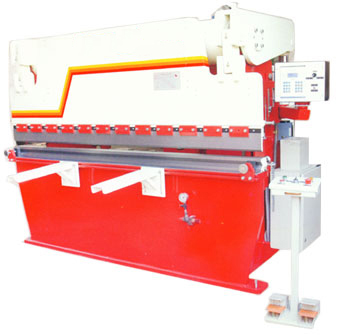

HYDRAULIC NC PRESS BRAKE
- Levers multiply force allowing smaller cylinders.
- Ram parallel motion (synchronizing) by heavy duty torsion tube
- Main drive motor complete with hydraulic power pack
- Fine stroke adjustment by linear scale.
- Three speed stroke cycle with fast approach-return and slow pressing
- Different Stroke for set-up trials (inching), production runs.
- pair of front sheet supports sheet while loading.
- Movable operator console with on-off & emergency push buttons cycle selector
- Switch, up down foot switch for operation from convenient location.
- Slide mounted control panel housing main electrical
- One suitable 4 way Die & Punch. ( unhardened & ungrounded
- Centralized lubrication system with auto pump,
- Servo CNC back gauge with precision ball screw, linear guide
- Automatic programmable back gauge retract feature
- CNC CONTROLLER- cvbelec
- Stroke depth measurement through high precision linear scales
