CNC Synchronize Hydraulic Press Brakes

We offer a wide range of Shearing Machines for sheet metal cutting.For thinner sheets we have undercrank Mechanical Shears and for thicker sheets we offer Overcrank Mechanical Shearing machines.With the advance in hydraulics, now the preferred machines are variable rake angle hydraulic shearing machines which offer better accuracies and cleaner cut.The Hydraulic shears are available as both NC hydraulic shears as well as CNC hydraulic shearing machines.

MODEL	TON NAGE	TABLE LENGTH	BENDING CAPACITY	TABLE WIDTH	CLEAR PASS	RAM STROKE	OPEN HEIGHT	THROAT DEPTH	SPEED APPR PASSING RETURN	POWER HP	PACKING DIMENTIONS (LXWXH)
CSHPB 1550	50	1500	4mm x 1500mm	150	1050	100	280	250	90-8-70	7.5	1900 x 1200 x 2200
CSHPB 2565	65	2500	3mm x 2500mm	150	2050	150	300	250	90-8-70	7.5	2800 x 1450 x 2300
CSHPB 25100	100	2500	5mm x 2500mm	175	2050	150	400	350	100-8-90	12.5	2800 x 1700 x 2500
CSHPB 30100	100	3000	4mm x 3000mm	175	2600	150	400	350	100-8-90	12.5	3400 x 1700 x 2500
CSHPB 40100	100	4000	3mm x 4000mm	175	3150	150	400	350	100-8-90	15	4400 x 1700 x 2500
CSHPB 25160	160	2500	8mm x 2500mm	200	2050	200	440	410	90-7-80	20	2820 x 1750 x 2660
CSHPB 30160	160	3000	6mm x 3000mm	200	2600	200	440	410	90-7-80	20	3320 x 1750 x 2750
CSHPB 40160	160	4000	5mm x 4000mm	200	3150	200	440	410	90-7-80	20	4320 x 1750 x 2800
CSHPB 25200	200	2500	10mm x 2500mm	200	2650	200	450	410	90-7-80	25	2820 x 2000 x 2750
CSHPB 30200	200	3000	8mm x 3000mm	200	2650	200	450	410	90-7-80	25	3320 x 2000 x 2750
CSHPB 40200	200	4000	6mm x 4000mm	200	3150	200	450	410	90-7-80	25	4320 x 2000 x 2800
CSHPB 30250	250	3000	10mm x 3000mm	250	2650	200	450	410	90-7-80	25	3320 x 2050 x 2800
CSHPB 40250	250	4000	8mm x 4000mm	250	3150	200	450	410	90-7-80	25	4320 x 2050 x 2800
CSHPB 50250	250	5000	6mm x 5000mm	250	4050	200	450	410	90-7-80	25	5700 x 2050 x 3250
CSHPB 60250	250	6000	5mm x 6000mm	250	5050	200	450	410	90-7-60	25	6700 x 2050 x 3700
CSHPB 30300	300	3000	12mm x 3000mm	300	2600	250	500	410	80-6-80	30	3320 x 2050 x 3000
CSHPB 40300	300	4000	10mm x 4000mm	300	3150	250	500	410	80-6-80	30	4320 x 2050 x 3200
CSHPB 50300	300	5000	8mm x 5000mm	300	4050	250	500	410	80-6-80	30	5500 x 2050 x 3300
CSHPB 60300	300	6000	6mm x 6000mm	300	5050	250	500	410	80-6-60	30	6500 x 2050 x 3700
CSHPB 30400	400	3000	16mm x 3000mm	320	2650	300	550	425	80-6-60	50	3550 x 2150 x 3850
CSHPB 40400	400	4000	12mm x 4000mm	320	3150	300	550	425	80-6-80	50	4500 x 2150 x 3850

Category: Sheet Metal Machines

Enquiry

Related products

C Type Power Press

We deal in a wide range of Power Presses. They are either Mechanical Power Presses or even Pneumatic Power Presses. The Power Press Machines are available as C type Power Press and Pillar type Power Press. We have both Ungeared Power Presses as well as Geared Power Presses in various capacities.

MODEL	10 TON	20 TON	30 TON	50 TON	75 TON	100 TON	150 TON
Measurement	mm	mm	mm	mm	mm	mm	mm
Bed Size	310x457	381x457	410x669	510x762	565x813	609x914	711x970
Bed to Ram	250	280	330	381	432	455	565
Stroke Length	52	63	75	95	110	115	127
Crank shaft Dia	80	90	100	110	125	152	185
Gear Dia.	455	558	609	711	813	863	1070
Fly Wheel Dia.	535	609	660	812	914	990	1070
Hole in Ram For Clamping	25	28	32	39	45	52	58
Motor R.P.M	1440	1440	1440	1440	1440	1440	1440
Power Requirement in H.P.	2	2	3	5	7.5	10	15

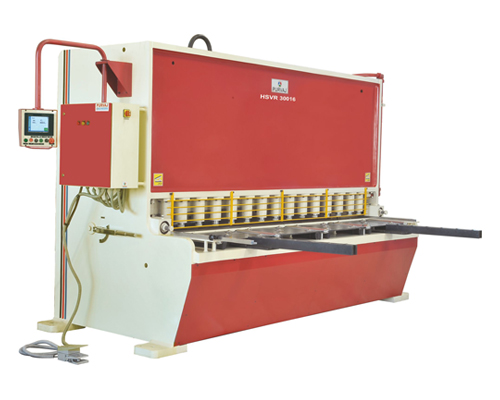

HYDRAULIC NC SHEARING MACHINE

Superior Design for Shearing Accuracy

Ultra-Heavy Frame Structure

The “HSVR” models are designed with a fully welded boxed-in bed table structure. The special worktable structure designed from limit element optimization make the curving SK, which is formed during shearing, to be able to compensate the curving of upper beam under the acting of shearing force, assuring the blade gap to keep same along the full length of worktable, enhancing the shearing precision and quality.

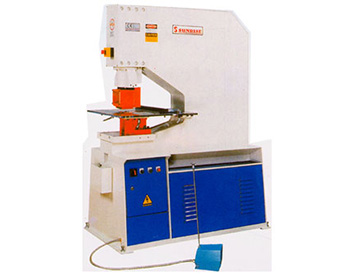

Iron Worker
